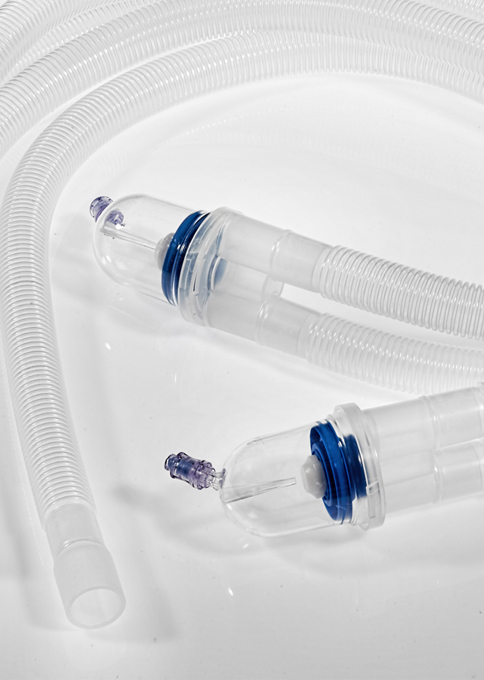

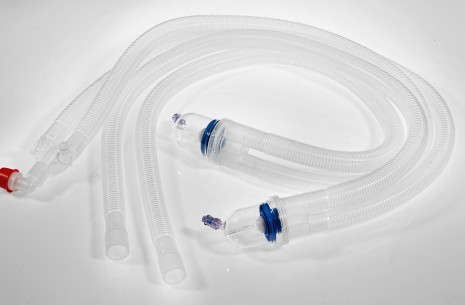

Conventional Breathing Circuits
Altech dual line conventional breathing systems are light and low compliance circuits designed for patients where ventilation is required in intensive care and anesthesia. Altech offers a wide variety of invasive ventilation circuits to meet individual requirements without compromising the safety of patients and healthcare professionals.

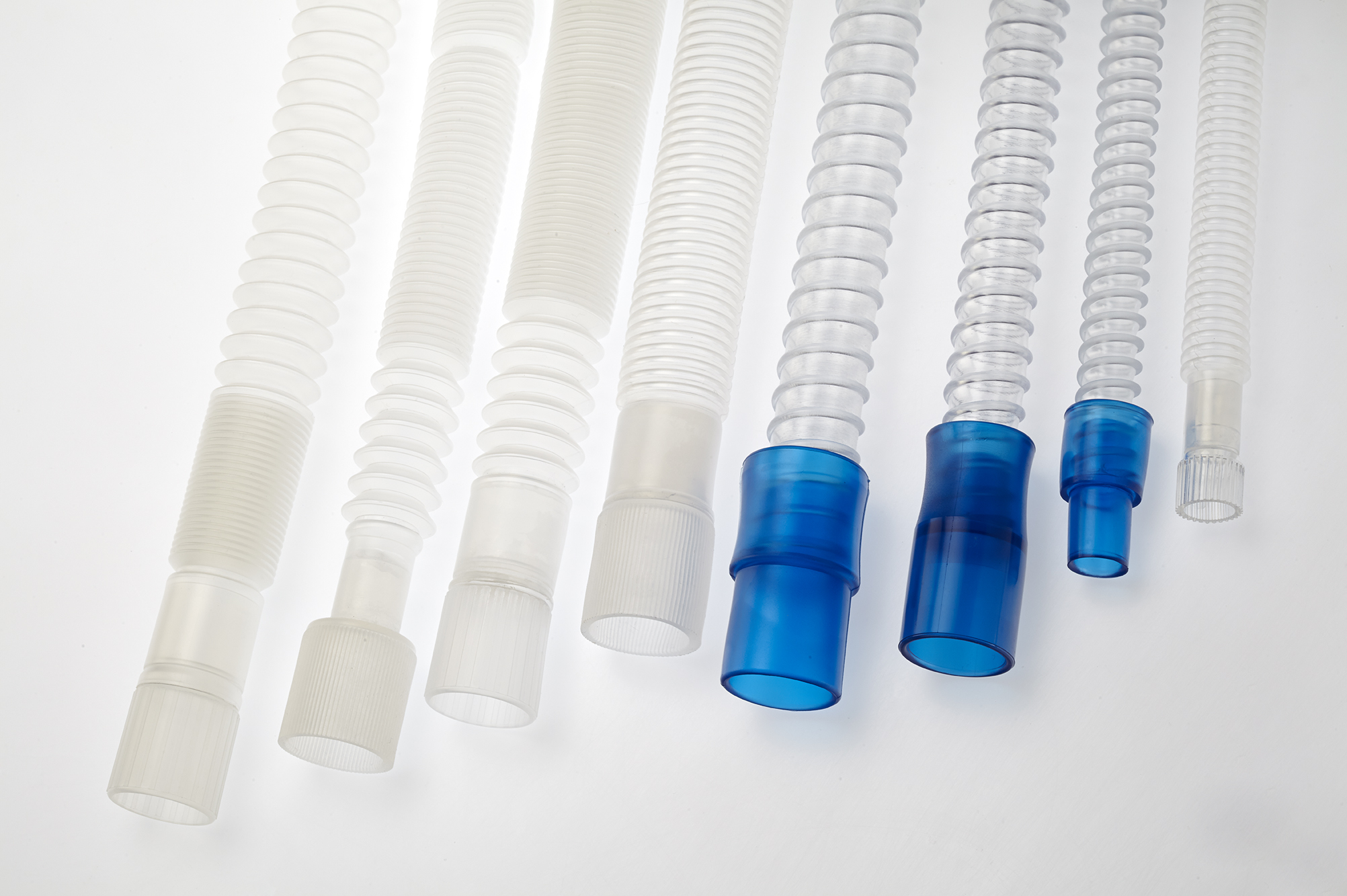

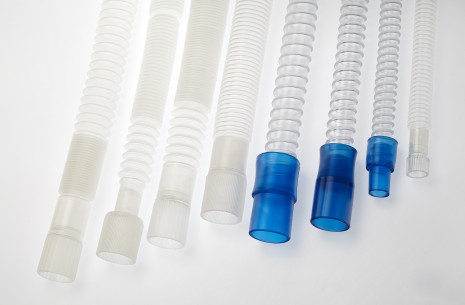

Options for Tubing Type

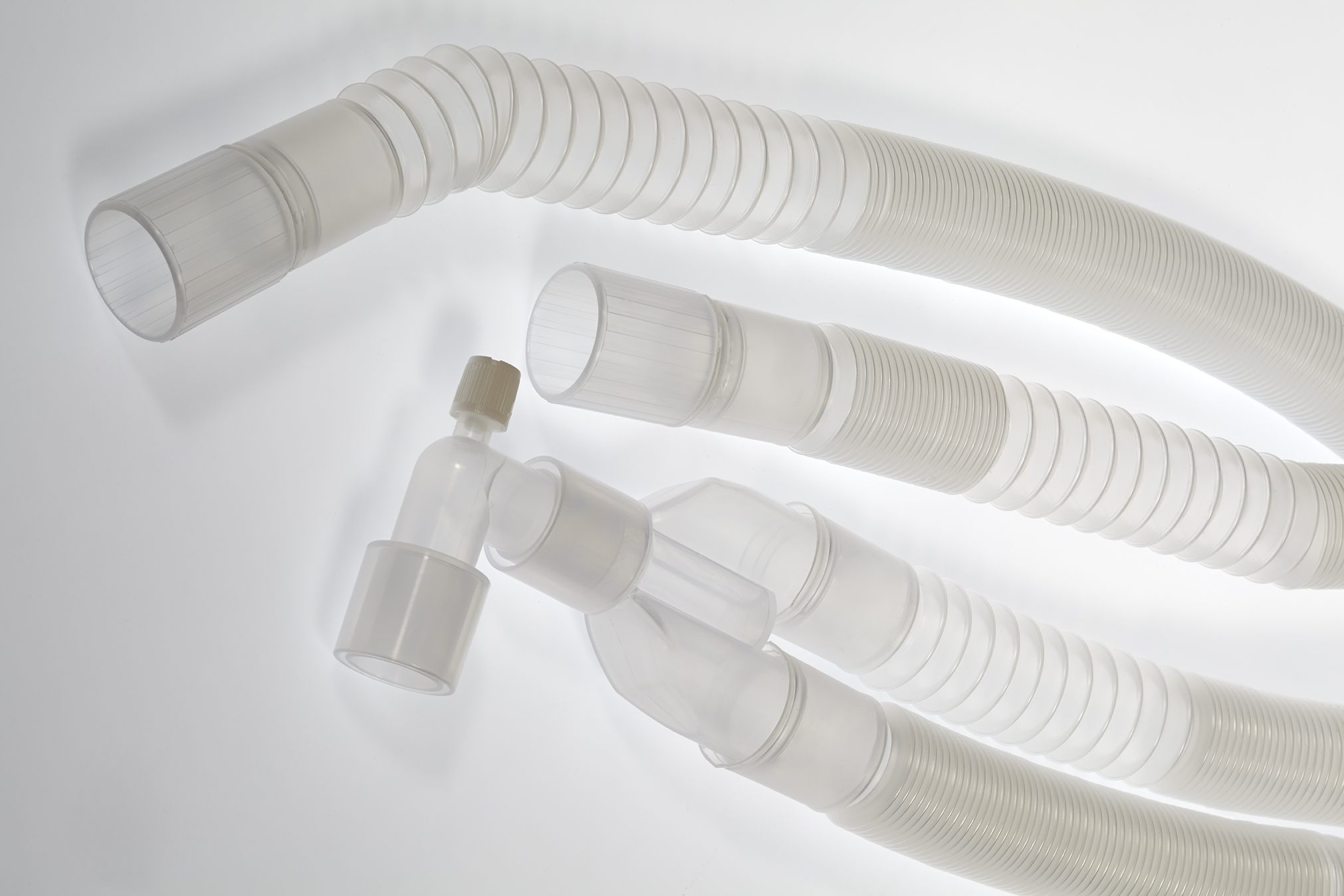

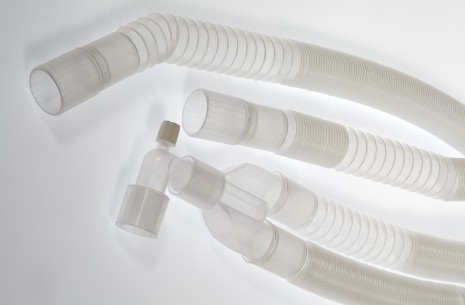

- Corrugated tubing circuits

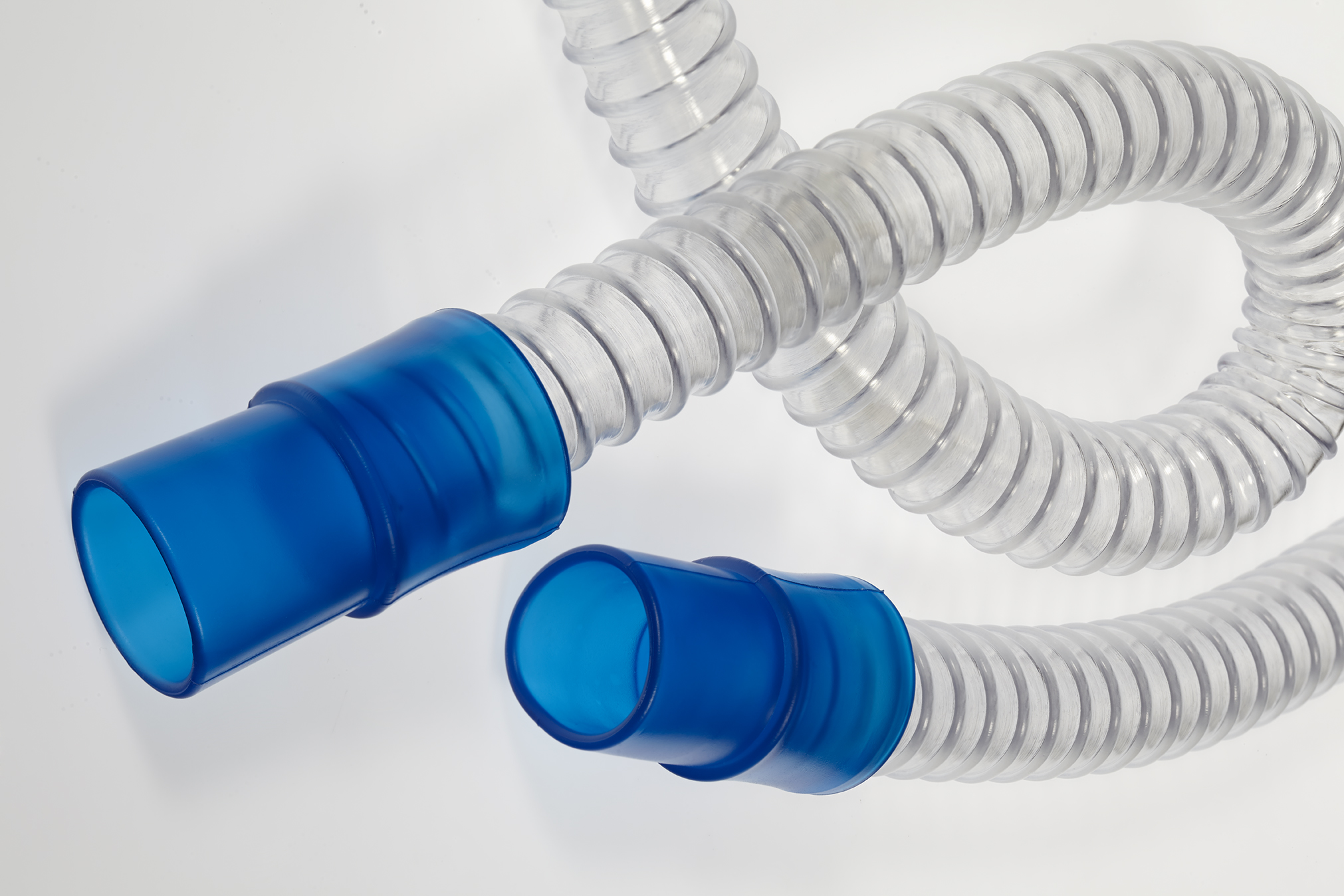

- Circuits with smooth inner surface (Smoothbore) tubing
With its flexible structure, it contributes to mobility (flexibility), creates low resistance to air flow, is resistant to breaking and bending thanks to its outer coils, accumulates minimum water in it with its flat inner structure and reduces the risk of bacterial growth. It also allows water that can accumulate due to condensation to flow easily into the water trap. They are easy to see inside due to their transparency. It offers low compliance values. It increases user comfort with soft and smelly connectors.

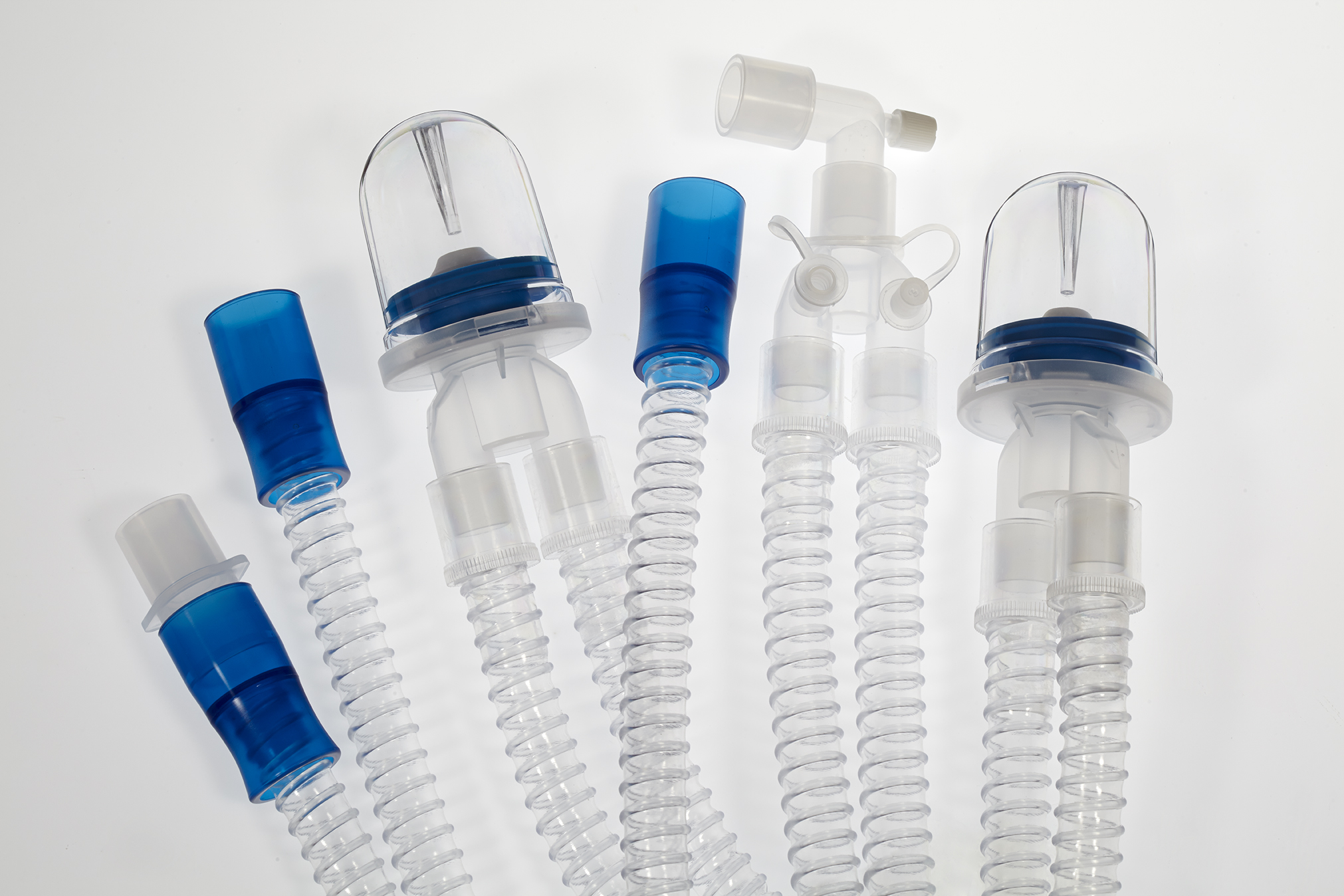

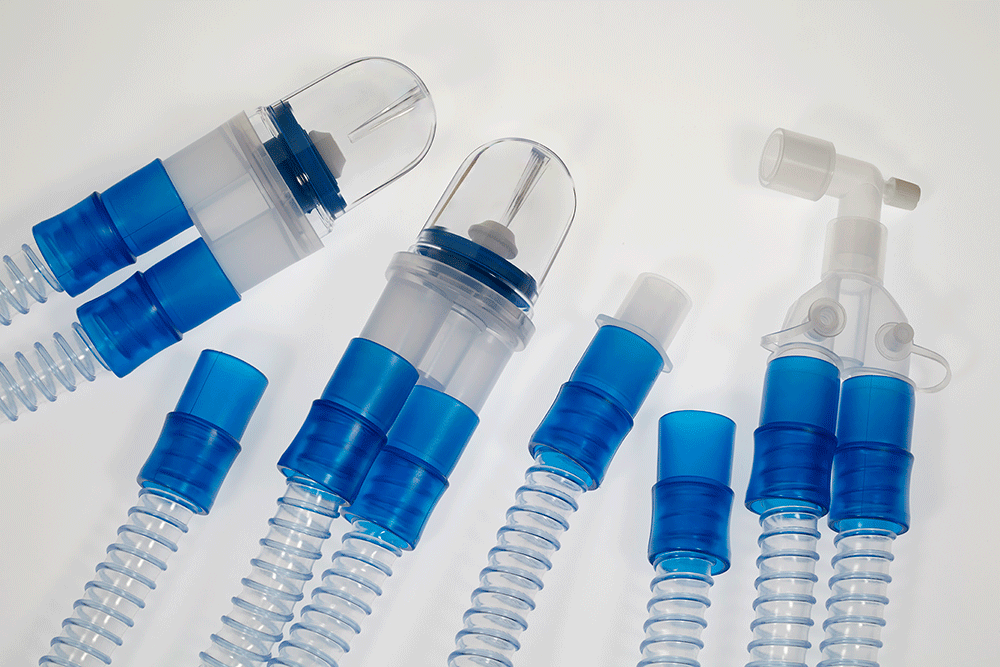

- Circuits with Extendible tubing
It takes up less space in usage, storage and waste stages with its adjustable length. It can stretch up to 3 times their length. Thanks to these structures, it offers ideal positioning. The pulling effect on the airway can thus be reduced.
Customized Tubing Lengths
Altech allows you to apply the treatment with maximum efficiency with the breathing circuits produced exactly according to your needs between 80 - 300 cm depending on the tubing type and patient category.
Rich Component Options

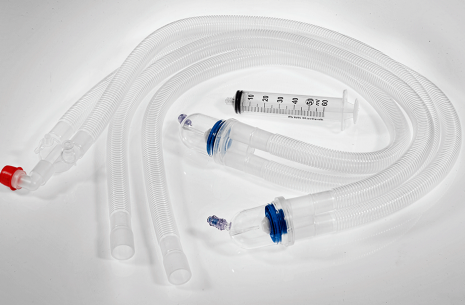

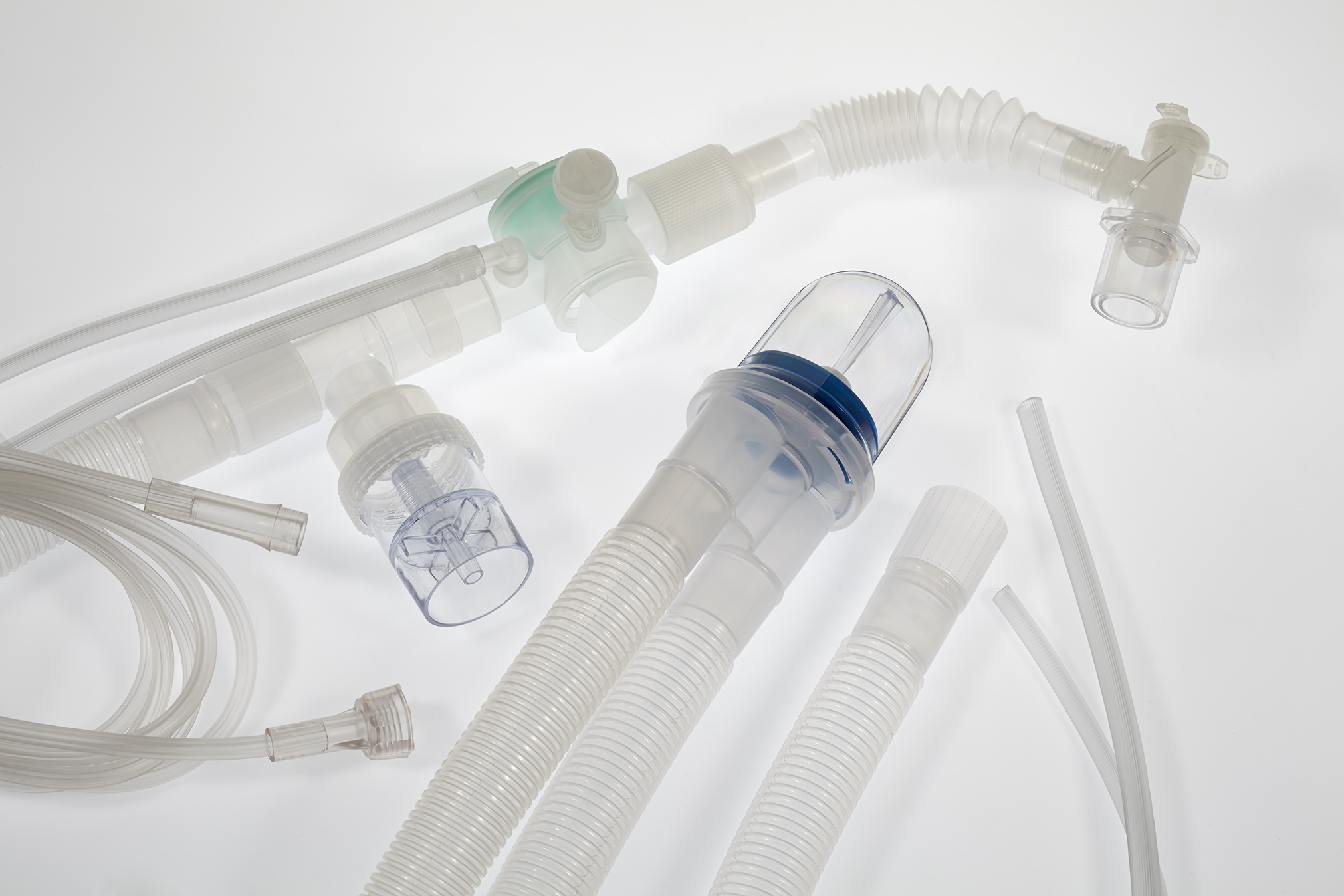

- Circuit options with water trap, filter, catheter connection suitable for use in intensive care units
- Circuit options with water trap, filter, breathing bag, mask, catheter connection, gas sampling line suitable for operating room use are offered.
The Most Suitable Breathing Circuit for Every Patient
Thanks to the tailor made production in accordance with international standards for adult, pediatric and neonatal patients, the highest success and efficiency rate is achieved in the treatments applied to patients.
Functional Components

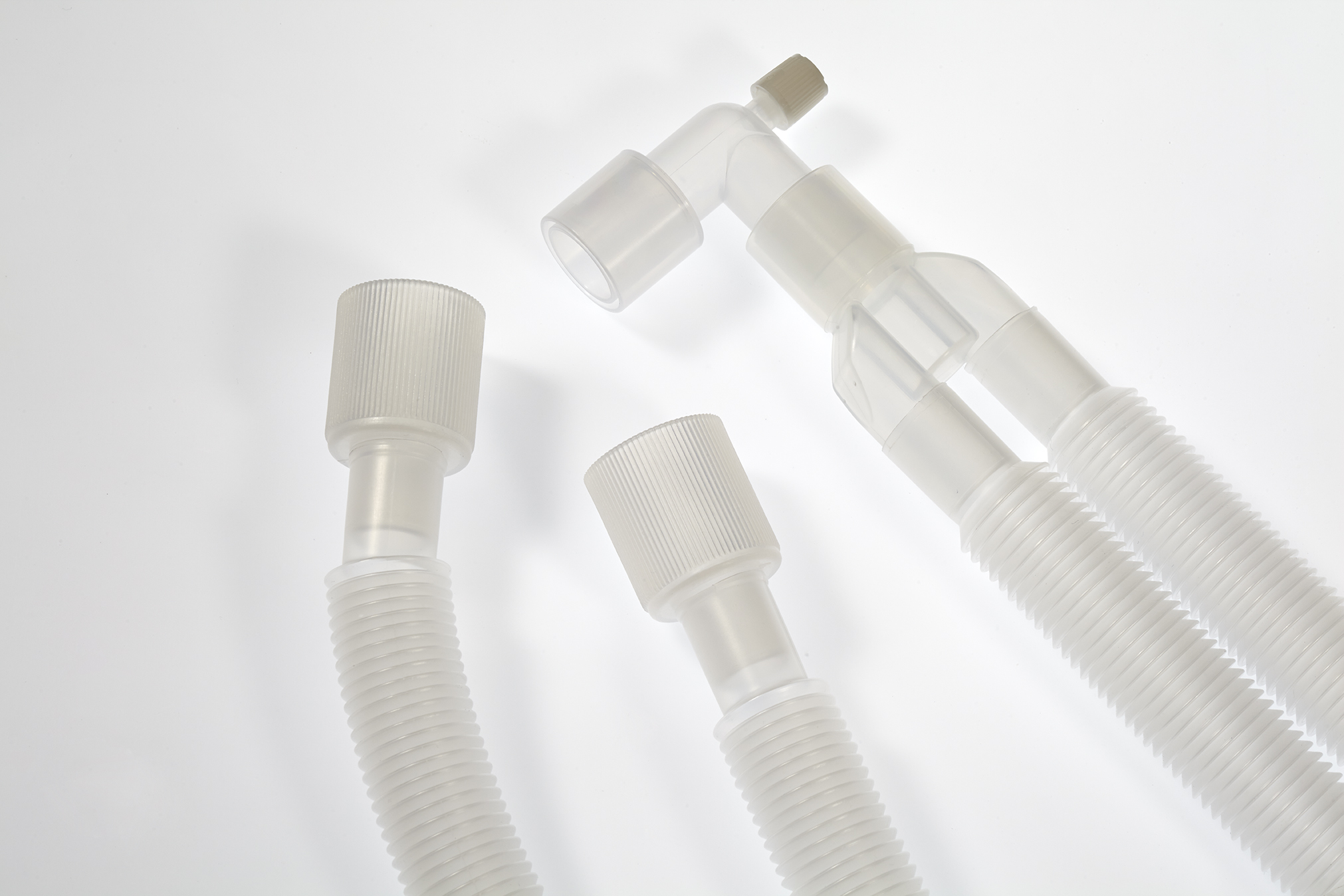

- Elbows and Y connectors are made of transparent raw material so that air flow can be observed easily. Connectors with and without ports are available.
- Catheter connection options including bronchoscopy and aspiration port provide operational convenience.

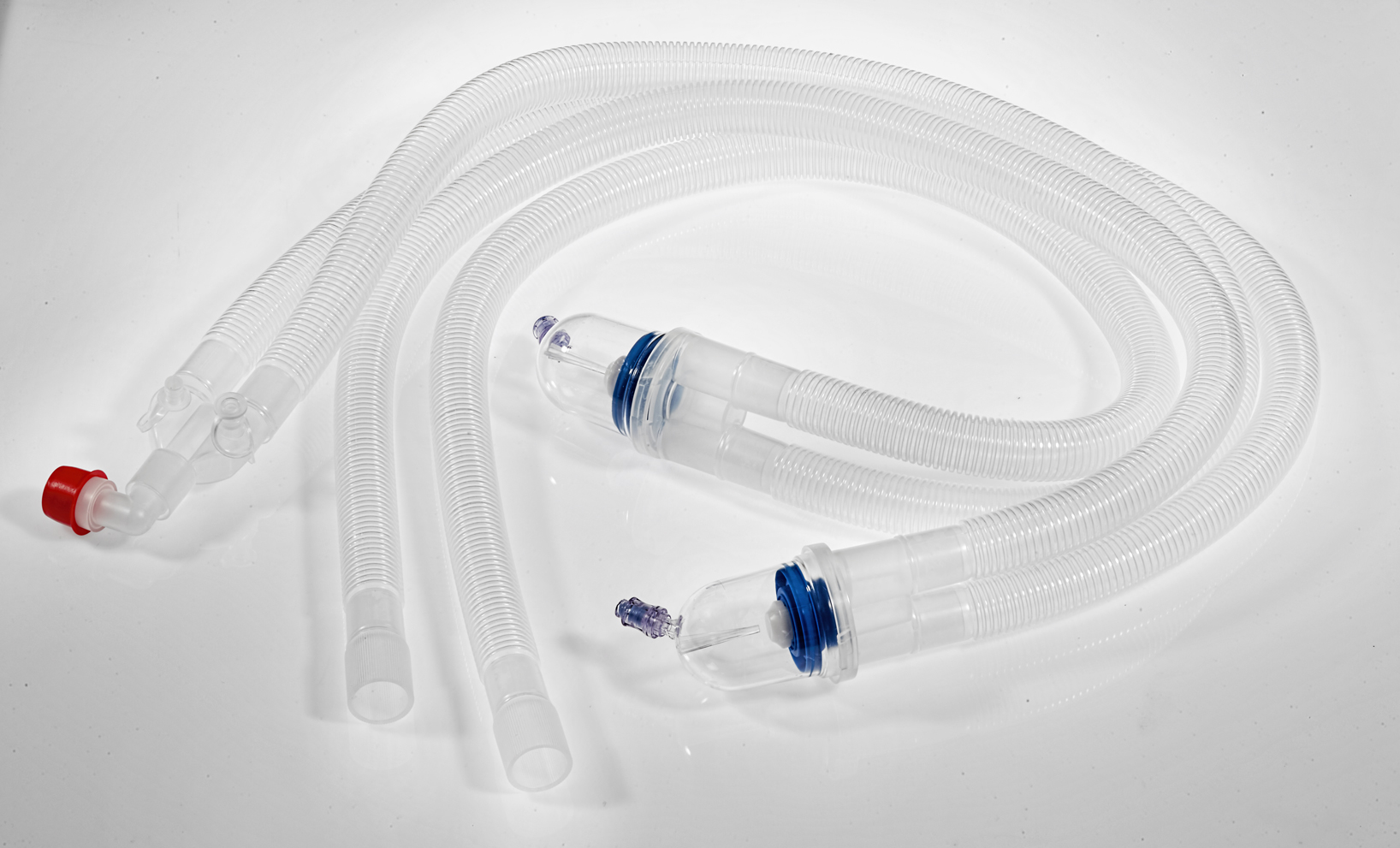

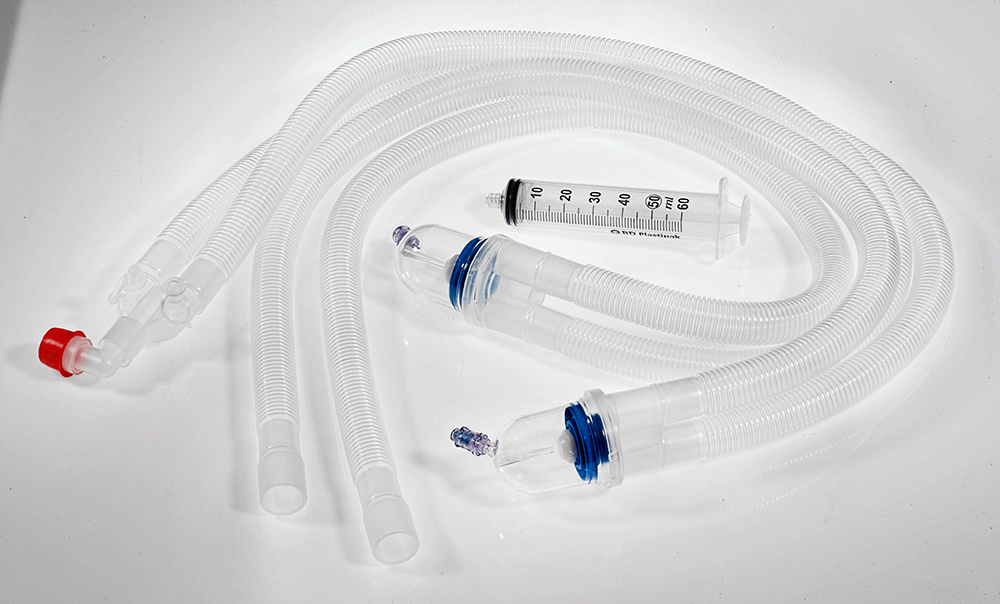

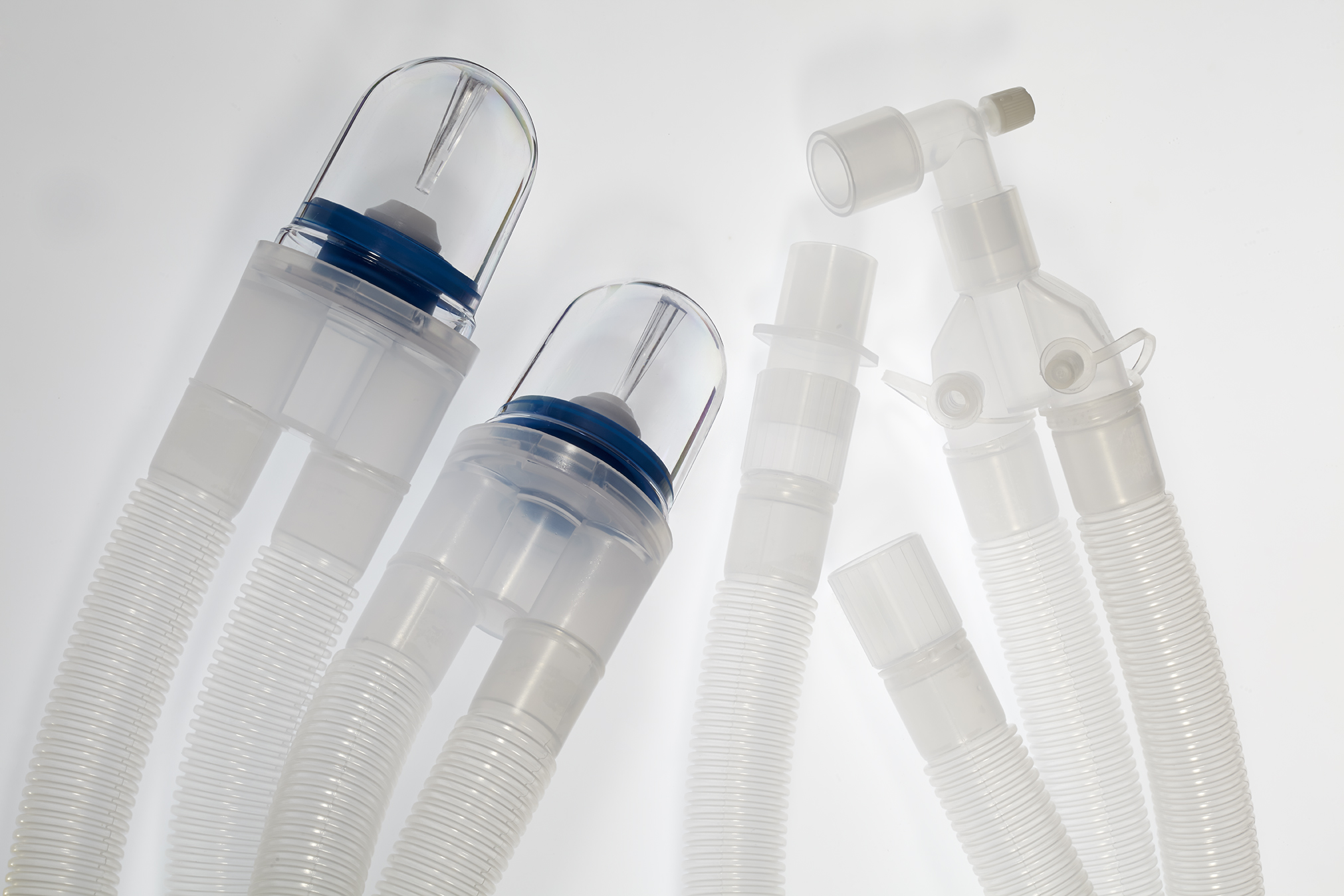

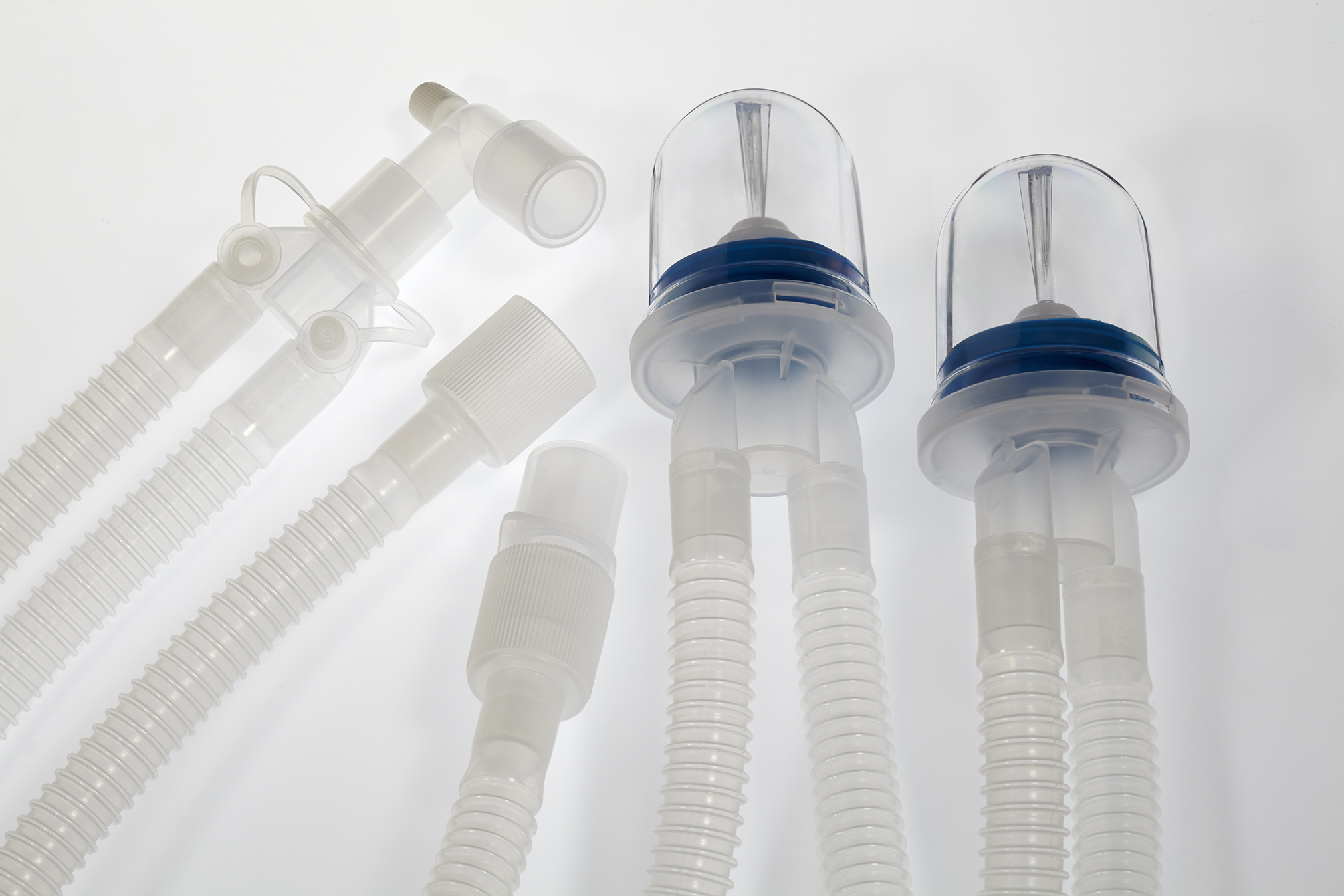

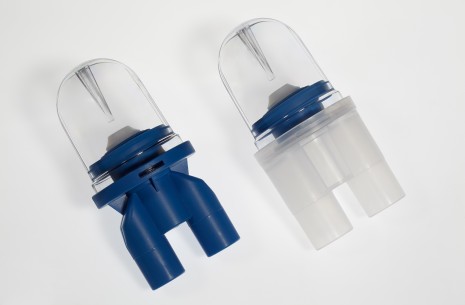

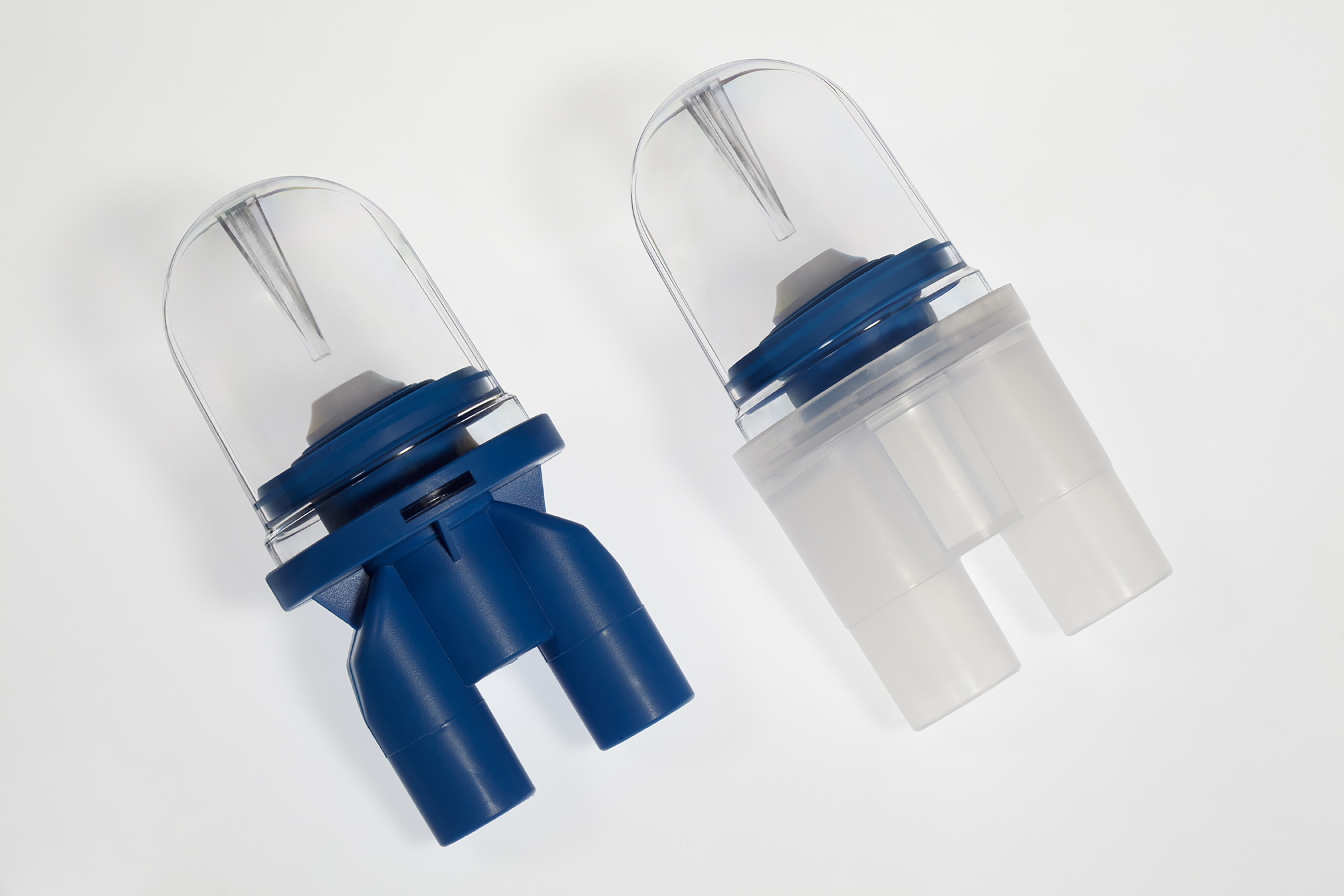

- Water traps with non-overflowing and non-leakage two-way valves keep the circuit dry, reducing the risk of contamination.
- Latex-free, anti-static neoprene breathing bags offer ideal wearing comfort for users with latex allergies. For the connection of the breathing bag to the device, the rigid PP connector at the end of the bag has a cage structure that prevents the bag from kinking.

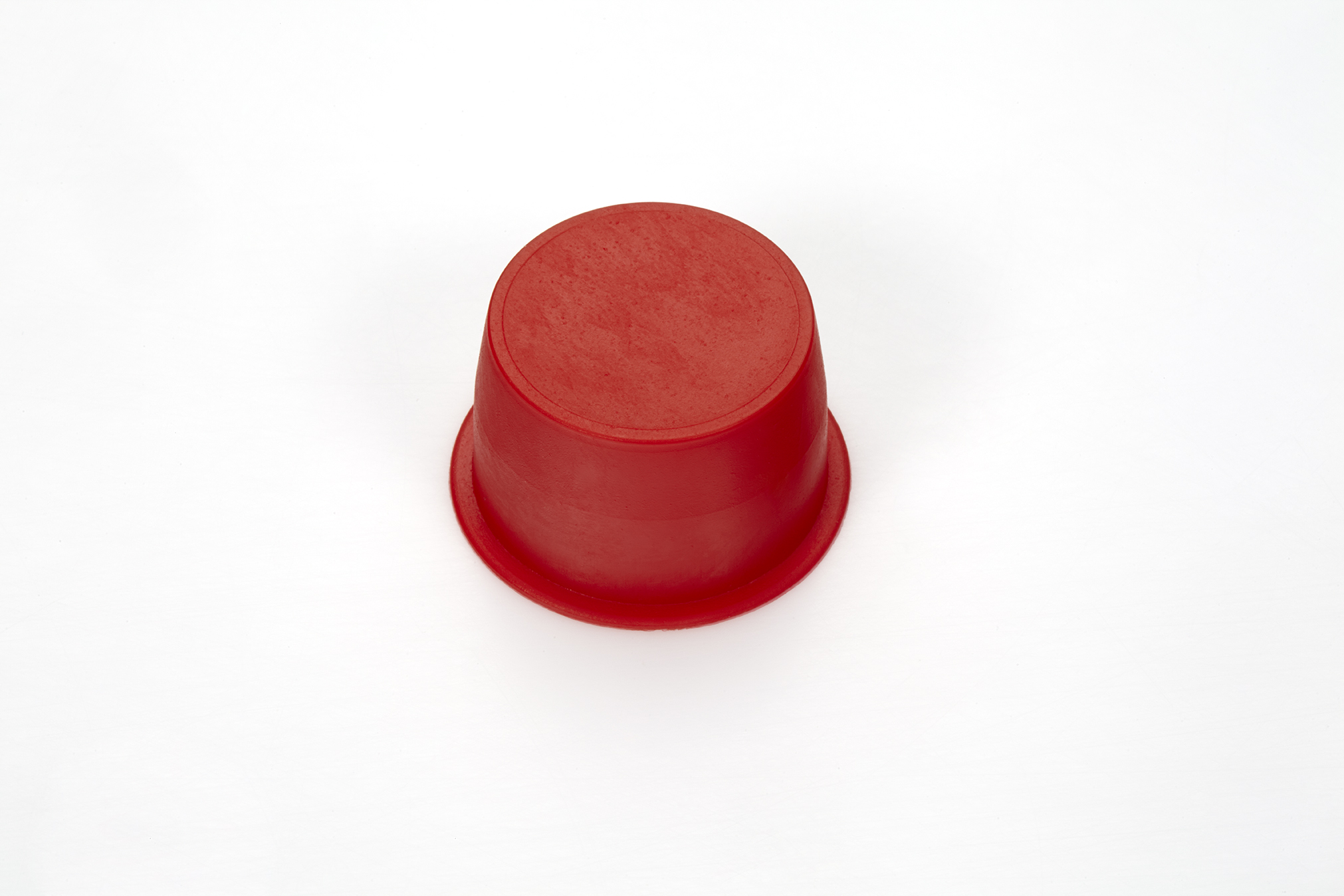

- Leakage test cover apparatus; the anesthesia and ventilator device is attached to the end of the circuit during the auto-control test and remains active during the entire test procedure; In this way, it should be possible to reliably detect whether there is a leakage in the circuit. This apparatus also prevents the cleaning of the circuit from being damaged while the patient is being aspirated, and foreign objects such as dust-particles etc. from entering the circuit.
Altech invasive ventilation breathing circuits are manufactured in class 10,000 clean rooms or optionally as sterile. Thanks to the successful design of the circuit components, the risk of rupture, separation and leakage is eliminated. Breathing circuits are subjected to stringent leakage-control tests in production.
